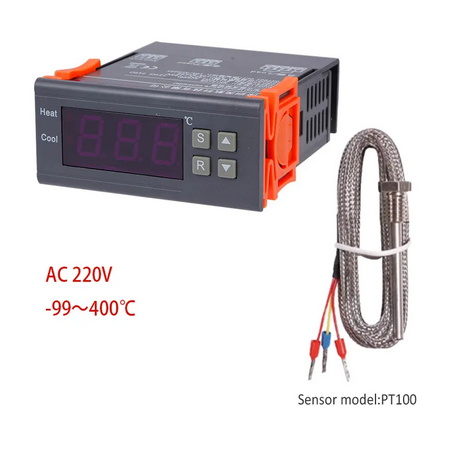

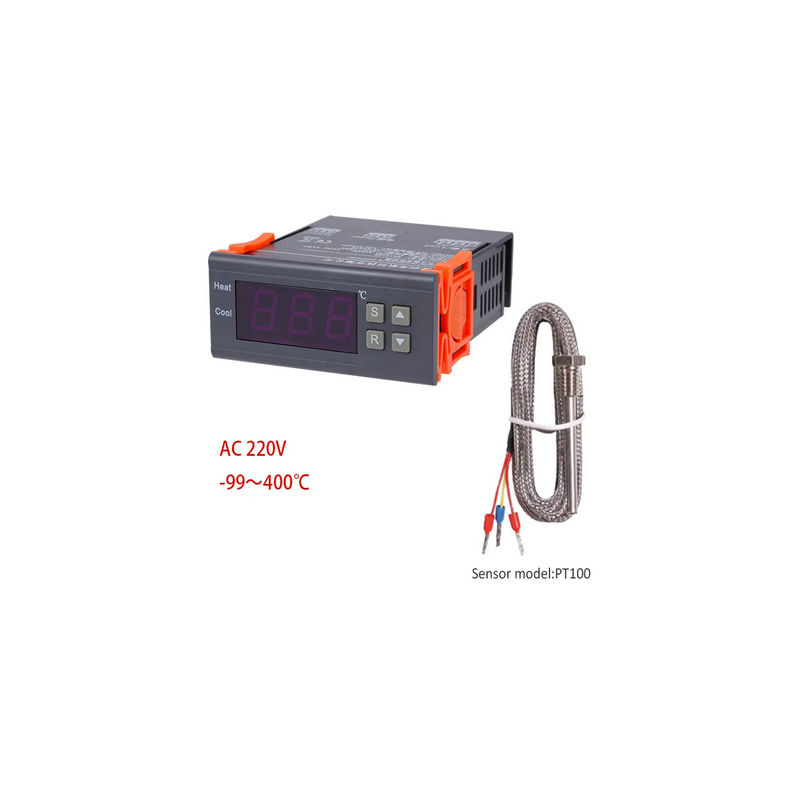

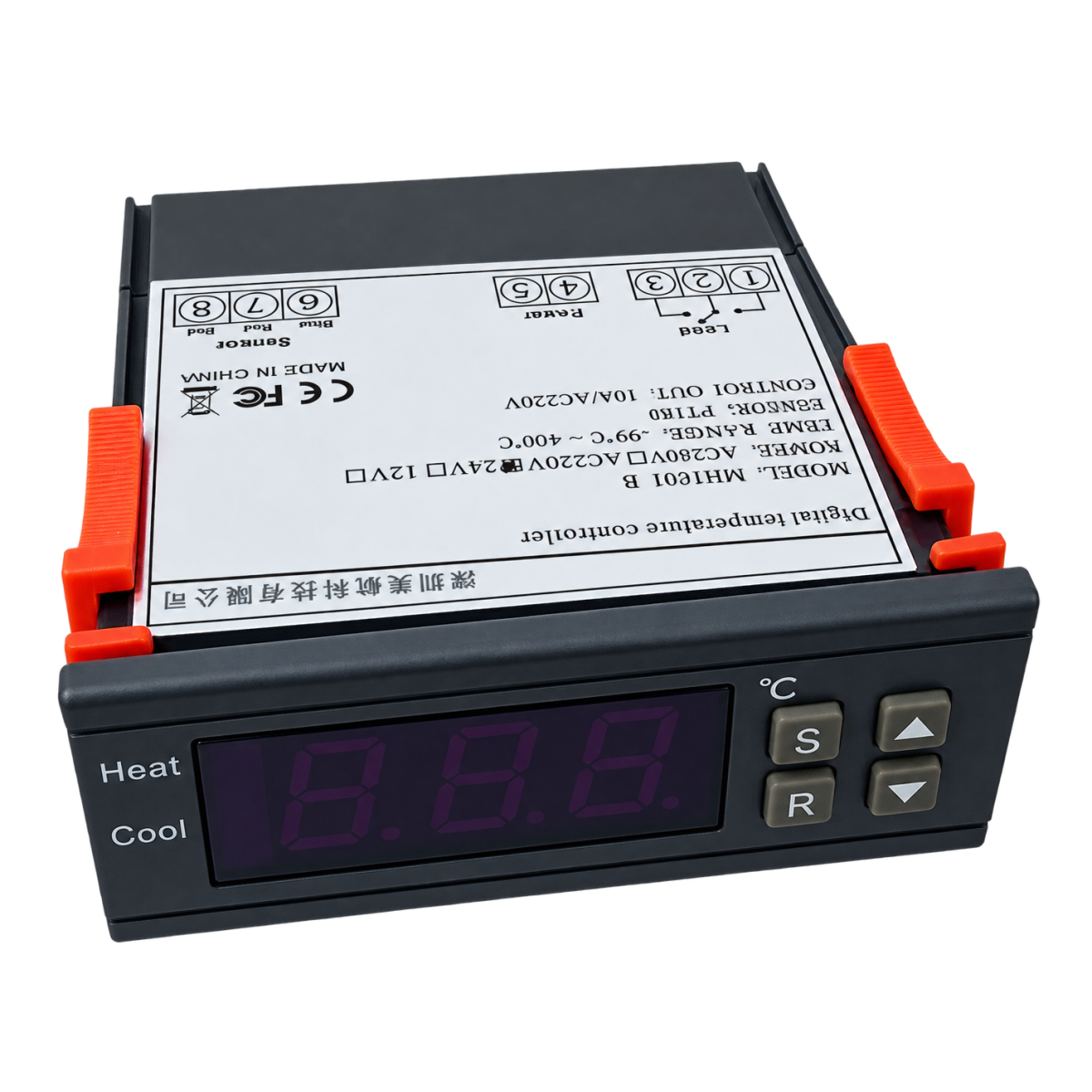

PT100 Temperature Controller –90 to 400 °C with Sensor
Kč850.00
Tax included
Digital PT100 temperature controller with a PT100 sensor for temperature measurement and control from –90 to 400 °C. The controller has a 10 A / 2200 W relay output and supports AC/DC 85–265 V power supply.
The measured temperature is shown on the digital display. The PT100 temperature sensor is included, so the controller can be used immediately for heating systems, ovens, furnaces and other temperature control applications.
- PT100 temperature controller
- Temperature range –90 to 400 °C
- PT100 sensor included
- Accuracy < ±0.5 °C
- 10 A / 2200 W relay output
- AC/DC 85–265 V power supply
- Digital display
- Adjustable switching temperature and hysteresis
PT100 Temperature Controller –90 to 400 °C
Digital PT100 temperature controller for measuring and automatically controlling temperature over a wide range of –90 to 400 °C. A PT100 temperature sensor is included with the controller.
The controller is suitable for heating equipment, ovens, furnaces, drying equipment, heating systems, technological processes and various DIY and industrial applications.
Temperature Control with PT100 Sensor
The temperature is measured using the included PT100 resistance temperature sensor. The current temperature is displayed on the digital display.
The controller switches the relay according to the configured temperature settings. The switching temperature and temperature difference can be adjusted.
For example, with a configured temperature of 69 °C, the relay can switch at 67 °C and switch off again at 68 °C.
Wide Temperature Range
The controller supports a temperature range from –90 to 400 °C, making it suitable for both low-temperature and high-temperature applications.
10 A Relay Output
The controller is equipped with a relay output rated at 10 A / 220 V AC, corresponding to a maximum switching power of approximately 2200 W.
For higher-power loads or inductive loads, we recommend using a suitable contactor or additional power relay.
Power Supply
The controller supports AC or DC 85–265 V power supply.
Applications
- Heating temperature control
- Electric ovens and furnaces
- Drying equipment
- Heating systems
- Laboratory equipment
- Industrial and technological processes
- Temperature control of tanks and equipment
- DIY temperature control projects
Technical Specifications
- Type: Digital temperature controller
- Temperature sensor: PT100
- Temperature range: –90 to 400 °C
- Accuracy: < ±0.5 °C
- Power supply: AC/DC 85–265 V
- Relay output: 10 A / 220 V AC
- Maximum switching power: 2200 W
- Display: Digital, red
- Dimensions: 87 × 74 × 34 mm
- Weight: 125 g
Package Contents
- Digital PT100 temperature controller
- PT100 temperature sensor
PT100 Temperature Sensor
The included PT100 sensor is suitable for temperature measurement across the controller's specified operating range.
Instructions
The controller is supplied with instructions for wiring and setup.
regpt100
