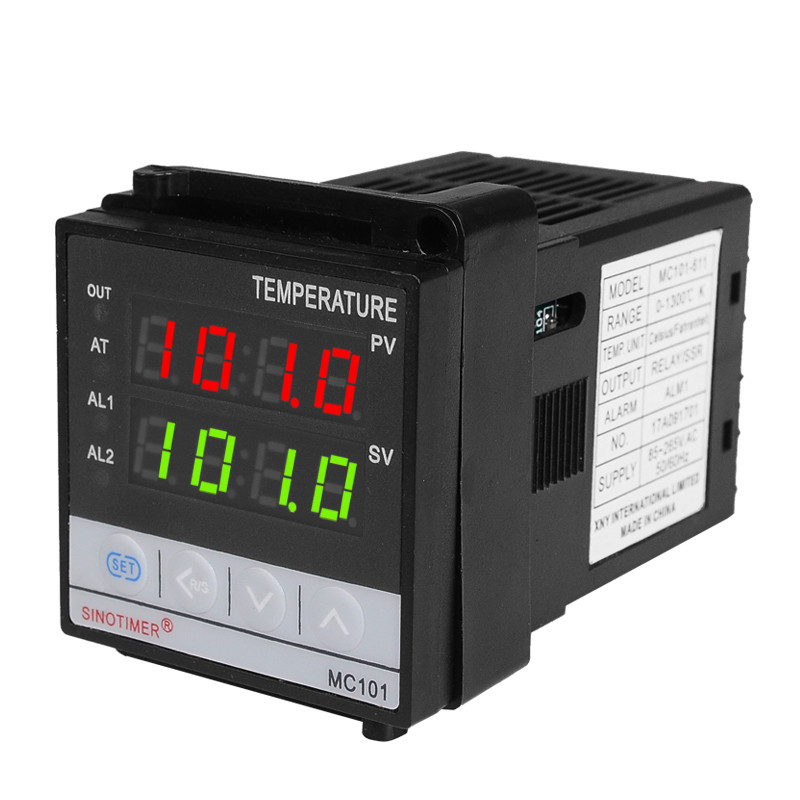

Sinotimer MC101 PID Temperature Controller for PT100 –90 to 400 °C
Kč850.00
Tax included
Sinotimer MC101 is a digital PID temperature controller with a universal input for PT100, RTD, thermocouple and other supported temperature sensors.
The controller supports temperature control from –90 to 400 °C and can be used for both heating and cooling. It features automatic PID tuning, a 4-digit red LED display and a 10 A relay output.
The temperature sensor is not included. A suitable PT100 sensor can be purchased separately.
- Sinotimer MC101 PID temperature controller
- PT100 / RTD and thermocouple input
- Temperature range –90 to 400 °C
- Automatic PID tuning
- Heating and cooling control
- Accuracy < ±0.5 °C
- 4-digit red LED display
- 10 A / 2200 W relay output
- AC/DC 85–265 V power supply
- PT100 sensor not included
Sinotimer MC101 PID Temperature Controller
Sinotimer MC101 is a digital PID temperature controller designed for precise temperature control in heating and cooling applications.
The controller has a universal input supporting PT100, RTD and thermocouple temperature sensors. The input type can be configured according to the sensor being used.
PT100 Temperature Controller
The MC101 can be used as a PT100 temperature controller for applications requiring accurate temperature measurement and automatic temperature regulation.
The controller supports a wide temperature range from –90 to 400 °C.
The PT100 temperature sensor is not included. A suitable PT100 sensor can be purchased separately.
PID Temperature Control
The MC101 uses PID control to maintain the desired temperature. PID parameters can be adjusted according to the application.
The built-in automatic tuning function (Auto-Tuning) can automatically find suitable PID parameters for the connected heating or cooling system.
Heating and Cooling Control
The Sinotimer MC101 can be configured for both heating and cooling control.
This makes the controller suitable for applications where the temperature must be maintained around a defined setpoint.
Universal Sensor Input
The controller supports different types of temperature sensors, including PT100 and thermocouples. The required input type can be selected in the controller settings.
Digital LED Display
The current temperature and configured values are displayed on a 4-digit red LED display.
The temperature can be displayed in degrees Celsius (°C) or Fahrenheit (°F).
10 A Relay Output
The MC101 has a relay output rated up to 10 A / 220 V AC, corresponding to a maximum switching power of approximately 2200 W.
For higher-power heating equipment or inductive loads, we recommend using a suitable contactor or additional power relay.
Applications
- Temperature control of ovens and furnaces
- Heating systems
- Drying equipment
- Incubators
- Cooling systems
- Laboratory equipment
- Industrial temperature control
- Process temperature monitoring
- DIY temperature control projects
Technical Specifications
- Manufacturer: Sinotimer
- Model: MC101
- Type: Digital PID temperature controller
- Input: PT100, RTD, thermocouples and other supported sensors
- Temperature range: –90 to 400 °C
- Accuracy: < ±0.5 °C
- Resolution: up to 0.1 °C for thermocouple and RTD inputs
- Power supply: AC/DC 85–265 V
- Relay output: 10 A / 220 V AC
- Maximum switching power: 2200 W
- Control mode: Heating / Cooling
- Display: 4-digit red LED
- Temperature unit: °C / °F
- Dimensions: 48 × 48 mm front panel
- Weight: 125 g
PT100 Sensor Not Included
The Sinotimer MC101 is supplied without a temperature sensor. A PT100 sensor can be purchased separately according to the required temperature range, probe length and installation method.
Package Contents
- Sinotimer MC101 digital PID temperature controller
Installation and Setup
Please follow the supplied MC101 instructions for electrical wiring, sensor connection and controller configuration.
