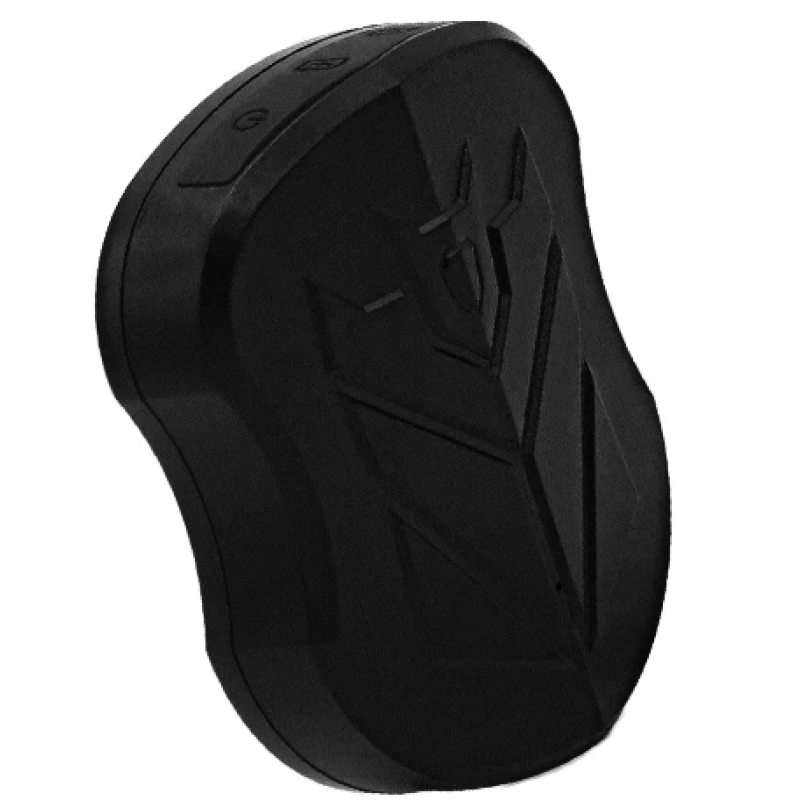

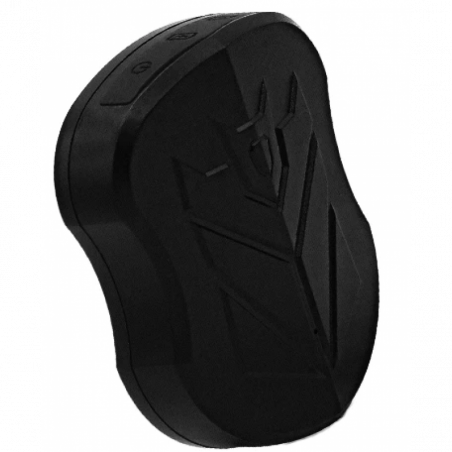

ST-905 2G/4G GPS Tracker with Magnetic Mount and 5000 mAh Battery

ST-905 2G/4G GPS Tracker with Magnetic Mount

The ST-905 is a GPS tracker with 2G and 4G mobile network support, a powerful magnetic mount and a built-in 5000 mAh battery. It is designed for tracking cars, work vehicles, machinery and other valuable property.

The strong magnet allows the tracker to be quickly attached to a suitable metal surface. The built-in battery allows the tracker to operate without a permanent power connection.

GPS Vehicle Tracking

The ST-905 can determine the vehicle's location using GPS and transmit location data through the mobile network.

For online tracking, the tracker can be connected to an online GPS tracking platform. A SIM card with a suitable mobile data plan is required for online tracking.

For sending individual GPS coordinates by SMS, a SIM card without a data plan can be sufficient.

2G and 4G Connectivity

The tracker supports both 2G and 4G mobile networks, making it suitable for applications where 4G connectivity is required.

5000 mAh Battery

The ST-905 features a built-in 5000 mAh rechargeable battery. Battery life depends on the selected operating mode and the frequency of GPS and data transmission.

In STANDBY mode, the battery can provide up to 60 days of operation. When movement or vibration is detected, the tracker can wake up and start working.

Three Operating Modes

WORK – Continuous Working Mode

The tracker remains active and sends data according to the configured time interval. Battery life is approximately 3 days, depending on usage.

MOVE – Movement Mode

The tracker works mainly while the vehicle or object is moving. When movement stops, the tracker enters a low-power sleep mode. GPS is switched off and GSM operates with reduced power consumption.

Vibration, an SMS command or an incoming call can wake the tracker. After activation, it can operate for approximately 5 minutes. MOVE is the factory default mode.

STANDBY – Low-Power Mode

In standby mode, GPS is switched off and GSM operates in a low-power mode. The tracker can wake up when vibration is detected. Depending on usage, battery life can be up to 60 days.

Strong Magnetic Mount

The powerful built-in magnet allows the tracker to be quickly attached to a suitable metal surface on a vehicle or machine.

This makes installation simple without requiring a permanent mounting bracket.

USB-C Charging and Vehicle Battery Power

The tracker can be charged using a 5 V USB-C connection.

A power converter for connection to a vehicle battery is also included. The red wire is connected to the positive (+) terminal and the black wire to the negative (−) terminal.

SIM Card

A Micro SIM (3FF) card is required: 15.0 × 12.0 × 0.76 mm.

For online tracking, a SIM card with a suitable mobile data plan is required. For sending GPS coordinates by SMS, a data plan is not required.

Suitable Applications

• Cars
• Work vehicles
• Commercial vehicles
• Motorcycles
• Agricultural machinery
• Construction machinery
• Trailers and equipment
• Other valuable property

Technical Specifications

• Model: ST-905
• Code: ST905-4G
• Mobile network: 2G / 4G
• Battery: 5000 mAh
• Standby battery life: up to 60 days
• MOVE mode battery life: approximately 15 days
• WORK mode battery life: approximately 3 days
• SIM card: Micro SIM (3FF)
• Charging: USB-C, 5 V
• Mounting: magnetic
• Dimensions: 80 × 68 × 22 mm
• Weight: 150 g

Online GPS Tracking

The ST-905 can be used with an online GPS tracking platform for monitoring the current location and vehicle movements.

1 year of access to the map server located in the Czech Republic is included free of charge.

A SIM card with a suitable mobile data plan is required for online tracking.

Package Contents

• 1× ST-905 GPS Tracker
• USB-C charging cable
