RTU5024 GSM Gate Opener – Open Gates by Phone Call
Kč800.00
Tax included
RTU5024 is a GSM gate opener that allows you to open gates, garage doors and barriers simply by calling the device from an authorized mobile phone number.
The relay is activated after a call from an authorized number. The call does not need to be answered, so there is no charge for the call. Up to 200 authorized users can be stored.
- GSM gate and garage door opener
- Open gates by calling from a mobile phone
- Up to 200 authorized users
- 3 A / 240 VAC relay
- 9–24 V DC power supply
- Suitable for gates, garage doors and barriers
- Remote ON/OFF switching
- GSM remote control via mobile phone
RTU5024 GSM Gate Opener
RTU5024 is a GSM remote control module designed for opening gates, garage doors and barriers using a mobile phone. Simply call the SIM card installed in the device from an authorized phone number and the relay will activate.
The call does not need to be answered. After verifying the caller's phone number, the RTU5024 activates the relay and can trigger the gate or garage door opener.
Open Gates by Phone Call
You can open a gate or garage door simply by making a phone call from your mobile phone. There is no need for a separate remote control for each user.
Only authorized phone numbers can activate the relay, making the system suitable for homes, companies, apartment buildings, parking areas and private entrances.
Up to 200 Authorized Users
The RTU5024 can store up to 200 authorized phone numbers. Each authorized user can open the gate by calling the GSM number assigned to the device.
Applications
- Garage doors
- Entrance gates
- Parking barriers
- Door openers
- Roller shutters and blinds
- Remote switching of electrical equipment
- Machines and equipment requiring remote ON/OFF control
Remote ON/OFF Switching
The RTU5024 relay can also be used for remote switching of electrical equipment. An authorized phone call can activate the relay without the need for a physical switch or remote control.
GSM Remote Control
The device communicates through the GSM mobile network. A SIM card with an active mobile service is required.
Technical Specifications
- Model: RTU5024
- Device type: GSM relay remote control
- Power supply: 9–24 V DC / 2 A
- Relay: 3 A / 240 V AC
- Current consumption at 12 V: max. 50 mA, typically 25 mA
- GSM bands: 850 / 900 / 1800 / 1900 MHz
- Authorized users: up to 200

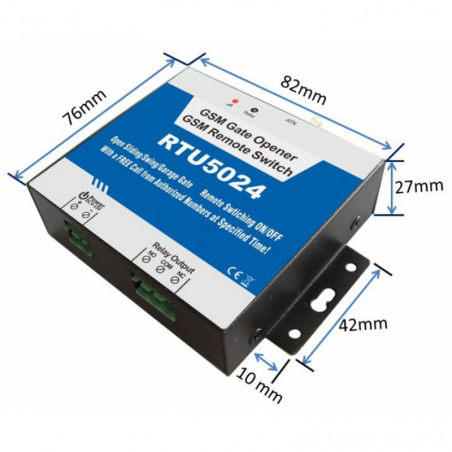

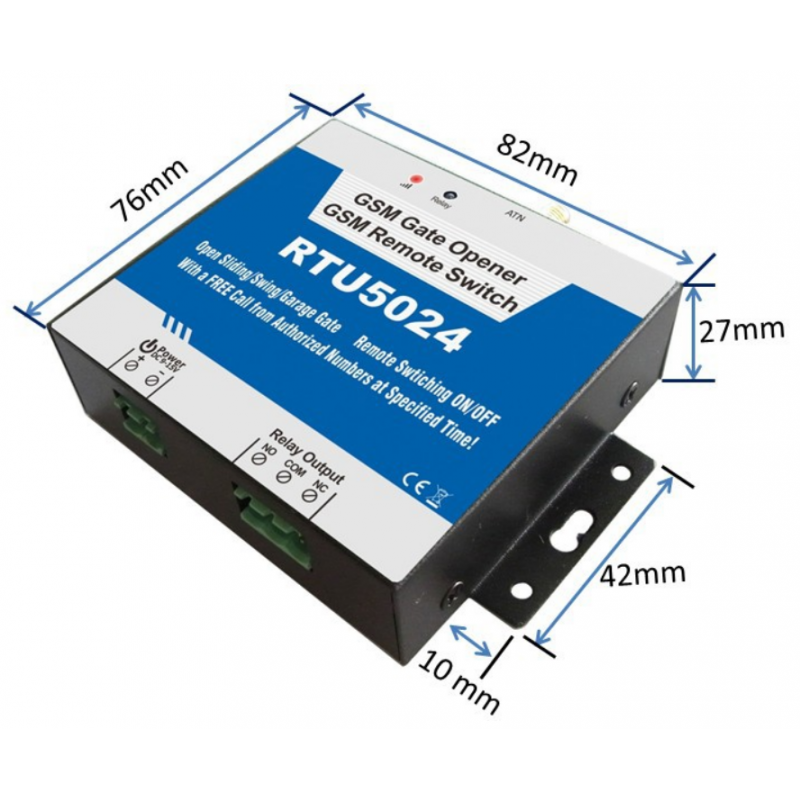

- Dimensions: 102 × 76 × 27 mm
- Operating temperature: −20 to +60 °C
Package Contents
- RTU5024 GSM module – 1 pc
- GSM antenna – 1 pc
- Power connection adapter – 1 pc
- Relay connection adapter – 1 pc
9–24 V DC / 2 A power adapter is not included.
