GAT27 4G GPS Tracker for Personal Tracking – 1500 mAh Battery

GAT27 4G GPS Tracker for Personal Tracking

GAT27 is a compact battery-powered 4G GPS tracker with LTE Cat 1 mobile connectivity and GNSS satellite positioning. Thanks to its small size, low weight and built-in battery, it is suitable for personal tracking and monitoring the location of belongings.

The tracker can transmit its location to an online tracking system and supports Geo-Fence monitored areas.

4G LTE Cat 1 and GNSS positioning

GAT27 uses 4G LTE Cat 1 for mobile data communication. For satellite positioning, it supports multiple GNSS systems including GPS, GLONASS, Galileo and BeiDou.

Support for multiple satellite navigation systems helps the tracker determine its position using available GNSS satellites.

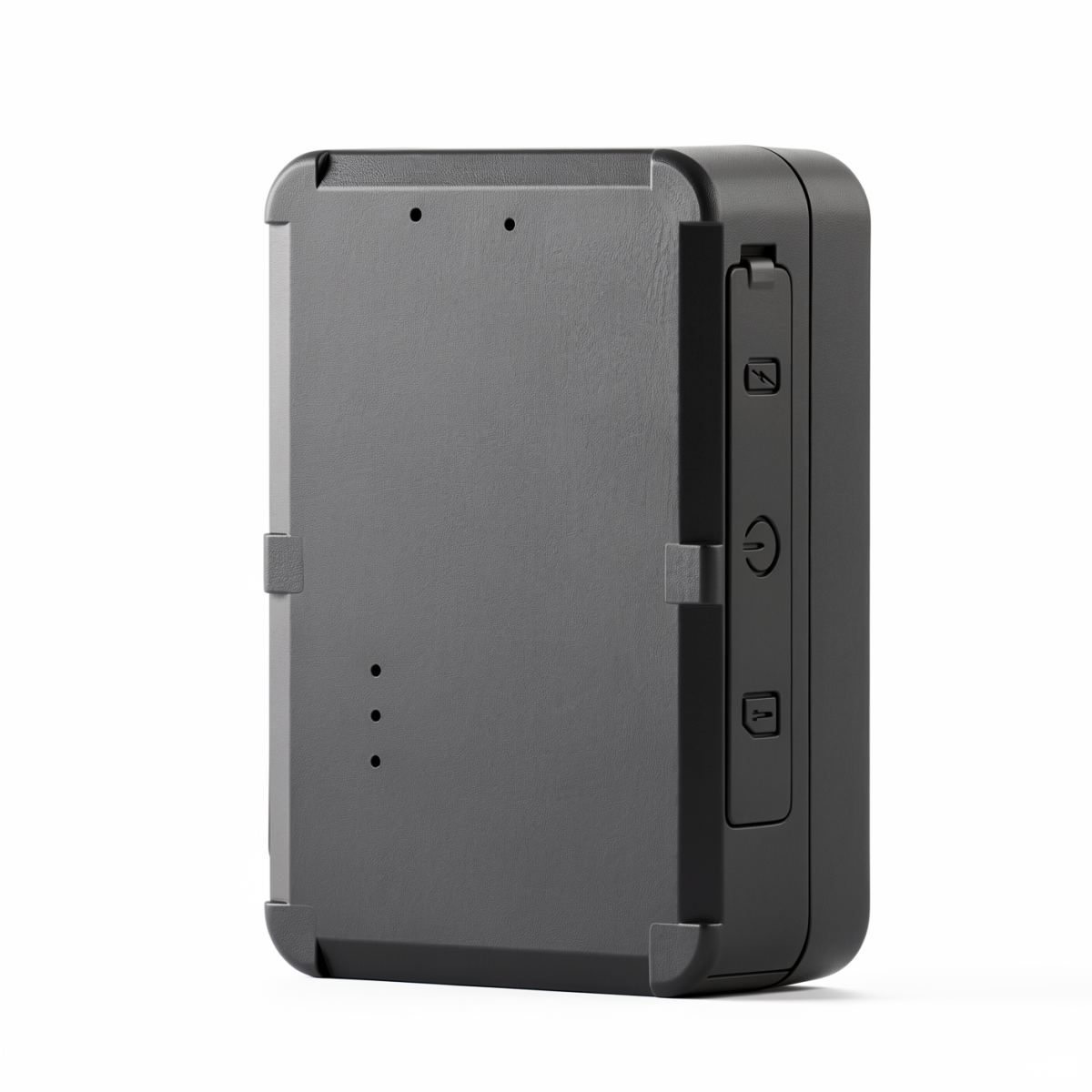

Compact and lightweight GPS tracker

GAT27 measures only 55.4 × 36.6 × 20 mm and weighs approximately 35 g. Its compact size makes it easy to carry in a pocket, bag or luggage.

Both the GNSS and LTE antennas are integrated inside the device, so no external antenna is required.

1500 mAh battery and USB-C charging

The GPS tracker is equipped with a built-in 1500 mAh / 3.7 V lithium battery. The battery is charged through a convenient USB-C port.

Several operating modes are available to balance tracking frequency and power consumption.

GAT27 operating modes

• Standby mode – power-saving standby operation
• Timing mode – timed operation
• Car chase mode – tracking mode designed for more intensive position monitoring

Actual battery life depends on the selected operating mode, tracking frequency, mobile and GNSS signal quality and the way the tracker is used.

Online GPS tracking

GAT27 uses a Nano-SIM card for communication over the mobile network. A SIM card with mobile data service is required for online tracking.

The location of the tracker can be displayed using an online tracking system.

Newly purchased trackers include 1 year of access to our tracking server located in the Czech Republic free of charge.

Geo-Fence monitored areas

GAT27 supports Geo-Fence. This function can be used to define a monitored geographical area and track the device in relation to the configured zone.

GPS, Wi-Fi and LBS positioning

In addition to satellite GNSS positioning, the manufacturer specifies support for Wi-Fi and LBS positioning. These methods can provide an approximate location when suitable satellite reception is not available.

GAT27 technical specifications

• Model: GAT27
• Mobile network: 4G LTE Cat 1
• GNSS: GPS, GLONASS, Galileo, BeiDou, A-GPS, QZSS, SBAS
• GNSS receiver: 64 channels
• Battery: 1500 mAh / 3.7 V lithium battery
• Charging: USB-C
• SIM card: Nano-SIM
• Dimensions: 55.4 × 36.6 × 20 mm
• Weight: 35 g
• GNSS antenna: internal high-gain antenna
• LTE antenna: internal high-gain antenna
• LED indication: 3 status LEDs
• Internal memory: 4 MB Flash
• Sensor: accelerometer
• Operating temperature: -20 to +75 °C
• Storage temperature: -40 to +85 °C

GAT27 features

• 4G online location tracking
• multiple positioning methods
• Geo-Fence
• multiple power-saving modes
• accelerometer
• remote firmware upgrade
• time synchronization

Frequently asked questions

What SIM card does the GAT27 use?

GAT27 uses a Nano-SIM card. A SIM card with mobile data service is required for online tracking.

Does the GAT27 support 4G?

Yes. GAT27 uses 4G LTE Cat 1 mobile technology for data communication.

How large is the GAT27?

The tracker measures approximately 55.4 × 36.6 × 20 mm and weighs only 35 g.

What battery does the GAT27 have?

GAT27 has a built-in 1500 mAh / 3.7 V lithium battery and is charged through a USB-C port.

Which satellite systems does the GAT27 support?

GAT27 supports multiple GNSS systems including GPS, GLONASS, Galileo and BeiDou.
